工業設備效果圖案例：



---



















.















 【返回其它作品分類】



---



制作工業設備效果圖涉及的工業設備種類廣泛，以下是一些常見的工業設備類型：



機床設備‌：



包括車床、銑床、加工中心等，這類設備效果圖常用于展示其精密結構、加工能力和自動化操作流程。



印刷設備‌：



如膠印機、平版印刷機等，效果圖突出其印刷精度、自動化控制及高效生產能力。



化工設備‌：

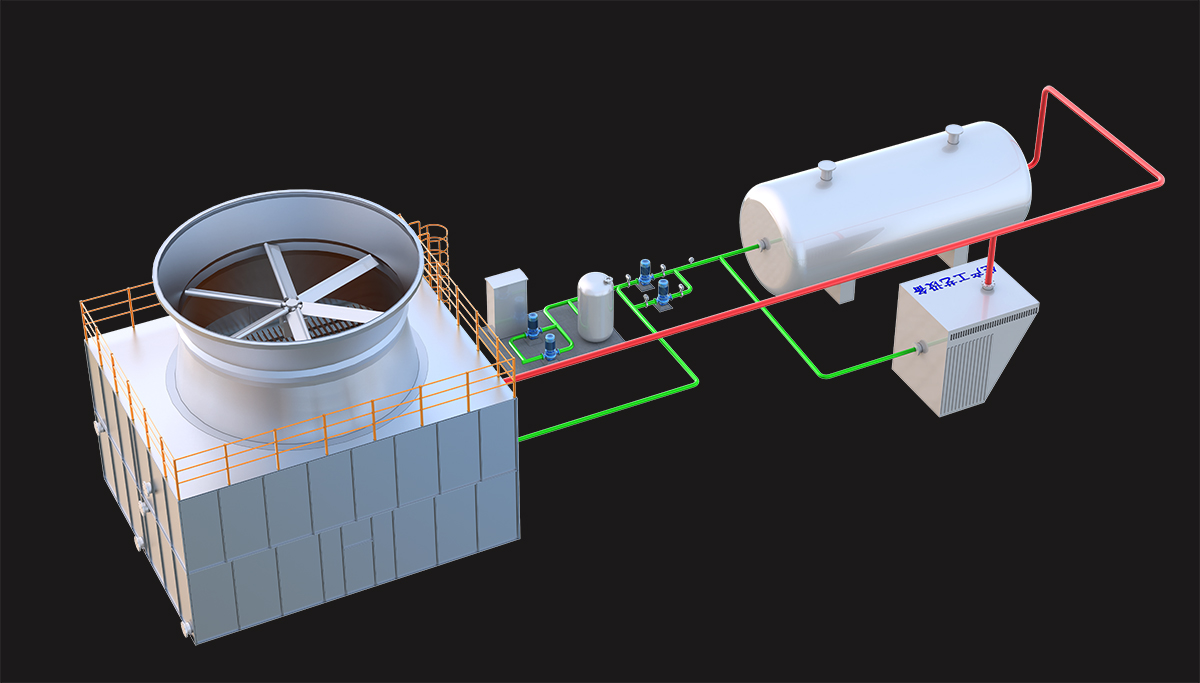

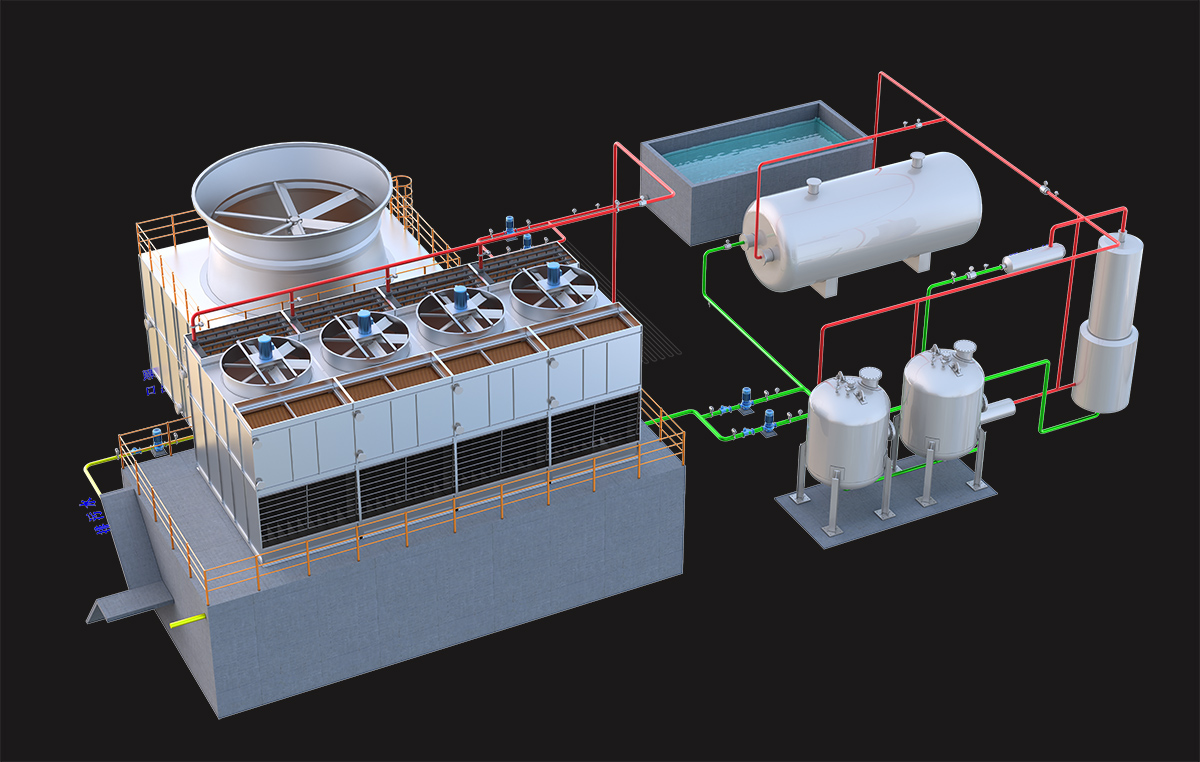

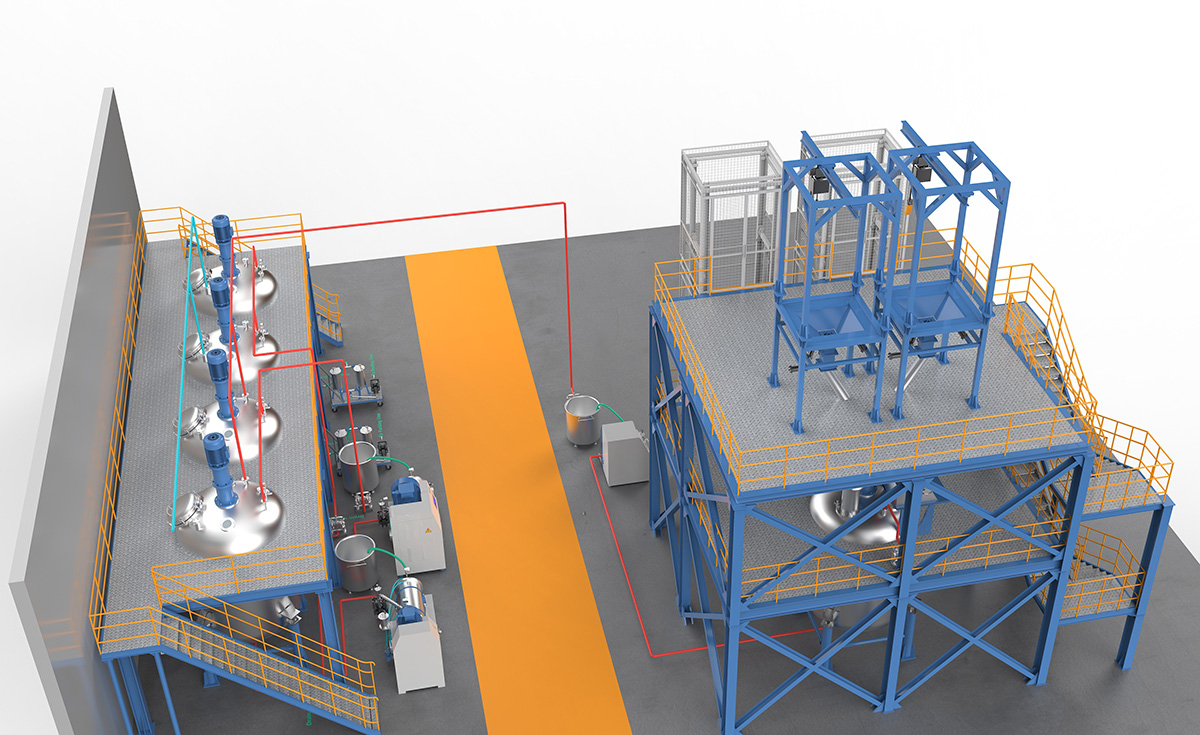

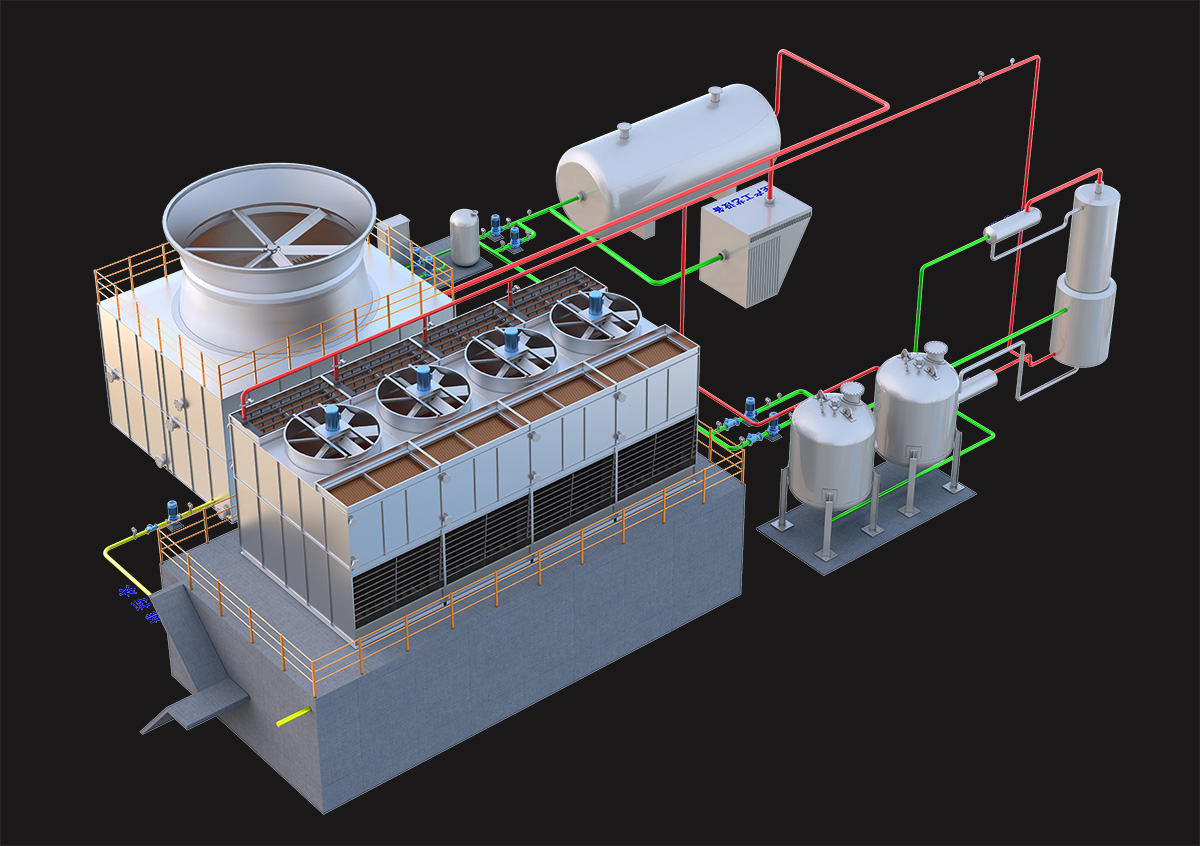

包括反應釜、換熱器、塔器（如填料塔、浮閥塔）等，效果圖展示其大型結構、耐腐蝕材質及復雜工藝流程。



起重與運輸設備‌：



如起重機、叉車、AGV（自動導引車）等，效果圖強調其載重能力、靈活操作及智能化導航。



能源設備‌：

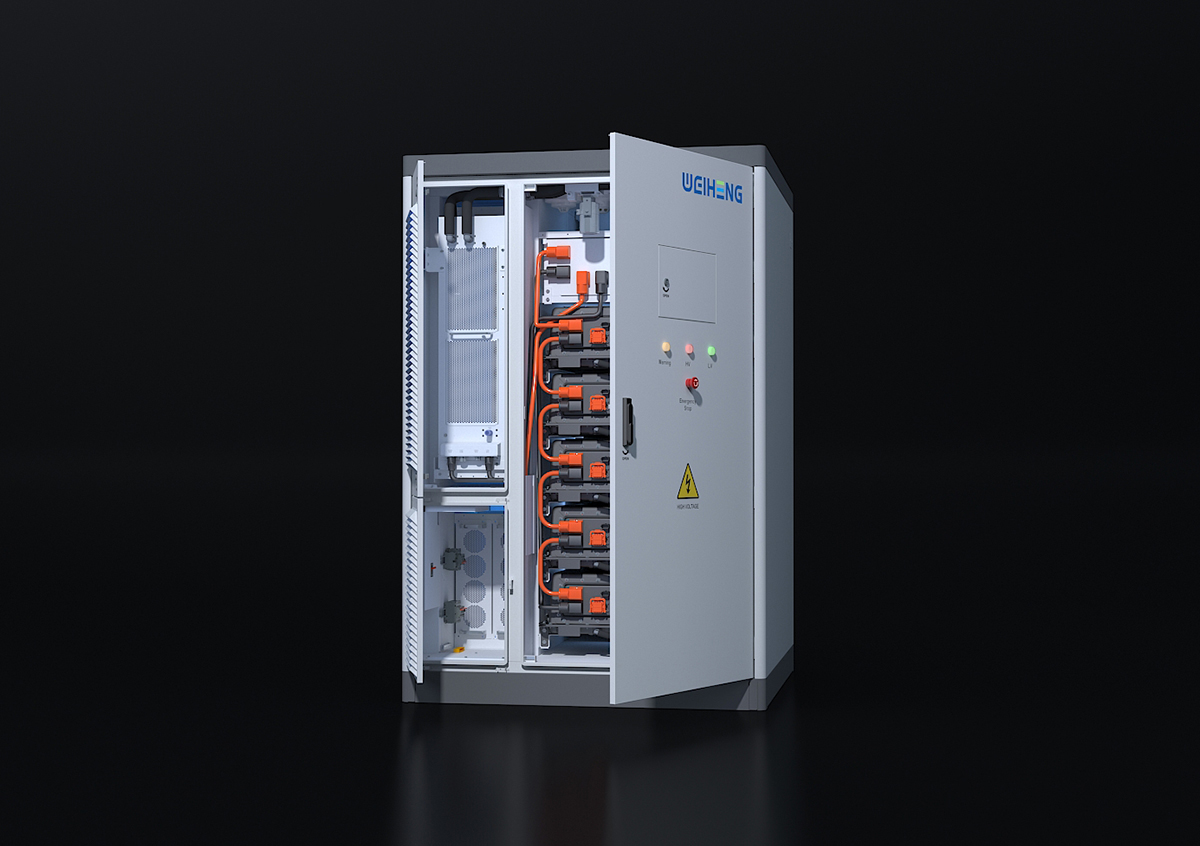

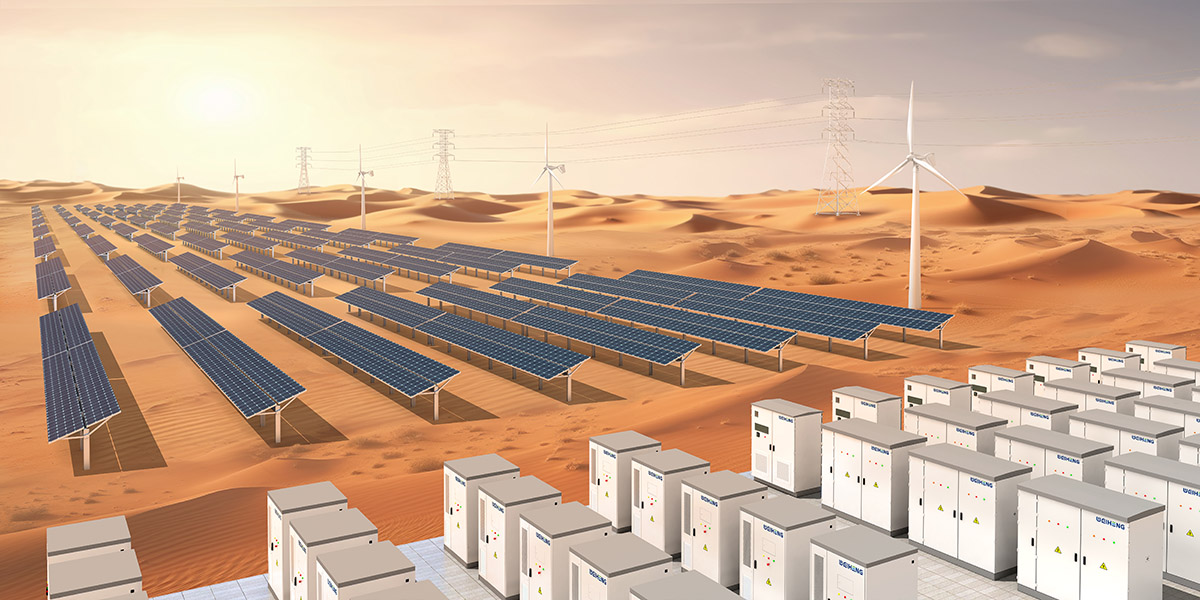

包括風力發電機、太陽能光伏系統、鍋爐等，效果圖展示其高效發電、模塊化安裝及環保設計。



包裝設備‌：



如灌裝機、封箱機、包裝線等，效果圖突出其自動化包裝、高效物流及模塊化設計。



醫療設備‌：



如X射線檢測系統、牙科數控銑床、牙科植入物制造機等，效果圖展示其高精度、智能化及符合人體工程學的設計。



采礦與建筑設備‌：



包括挖掘機、裝載機、采礦警報系統等，效果圖展示其重型結構、高效作業能力及安全防護設計。



自動化與檢測設備‌：



如機器人生產線、激光焊接機、超導計算機等，效果圖突出其高效生產、精密加工及高科技感。



制作工業設備效果圖具有多方面的重要好處，以下從不同維度進行全面且深入的闡述：



一、提升產品展示與營銷效果‌



增強視覺吸引力‌



效果圖通過逼真的三維建模、材質渲染及場景布置，將工業設備的外觀、結構及功能以直觀、生動的方式呈現，吸引客戶注意力。

相較于傳統二維圖紙或文字描述，效果圖更具視覺沖擊力，能快速傳達產品核心價值。



精準傳達設計意圖‌



效果圖可精確展示工業設備的尺寸、比例、材質及工藝細節，避免因語言或文字描述不準確而導致的誤解。

客戶可通過效果圖提前了解產品全貌，減少溝通成本，提高決策效率。



促進市場推廣與銷售‌



在產品宣傳冊、網站、展會等場景中，效果圖是重要的營銷工具，能提升品牌形象，增強客戶信任感。

通過效果圖展示產品的創新設計、高效性能及適用場景，可激發客戶購買欲望，促進銷售轉化。

二、優化設計與研發流程‌



設計驗證與迭代‌



在產品研發階段，效果圖可用于驗證設計方案的可行性，提前發現潛在問題（如結構沖突、操作不便等）。

通過多次修改和優化效果圖，可減少實際生產中的設計變更，降低研發成本。



跨部門協作與溝通‌



效果圖作為統一的設計語言，可促進研發、生產、銷售等部門之間的溝通與協作。

各部門可通過效果圖快速理解設計意圖，提出反饋意見，確保產品符合市場需求。



降低研發風險‌



通過效果圖模擬產品在實際工作環境中的表現，可評估其適用性、可靠性及安全性。

提前發現并解決潛在問題，可降低研發風險，確保產品順利推向市場。

三、支持生產與制造環節‌



指導生產與裝配‌



效果圖可作為生產指南，幫助工人理解產品結構、裝配順序及操作要點。

通過效果圖展示關鍵部件的安裝位置、連接方式及調試方法，可提高生產效率，減少裝配錯誤。



優化工藝流程‌



效果圖可用于模擬生產工藝流程，評估生產線的布局、設備配置及物流路徑。

通過優化效果圖中的工藝流程，可提高生產效率，降低制造成本。



培訓與教學工具‌



效果圖可作為培訓教材，幫助新員工快速掌握產品知識、操作技能及維護方法。

在教學場景中，效果圖可直觀展示工業設備的原理、結構及功能，提高教學效果。

四、提升客戶服務與售后支持‌



客戶定制化需求響應‌



通過效果圖展示不同配置、顏色或材質的工業設備，可滿足客戶個性化需求。

客戶可通過效果圖提前確認產品外觀及功能，減少定制化生產中的溝通成本。



售后技術支持‌



效果圖可作為售后技術支持的工具，幫助客戶理解設備結構、維修方法及保養要點。

通過效果圖展示關鍵部件的拆卸、更換及調試步驟，可提高售后服務的效率和質量。



客戶反饋與產品改進‌



效果圖可用于收集客戶反饋，了解客戶對產品外觀、功能及使用體驗的滿意度。

通過分析客戶反饋，可針對性地改進產品設計，提升客戶滿意度和忠誠度。

五、案例與數據支撐‌



案例分析‌



某機械制造企業‌：通過效果圖展示新型數控機床的外觀、結構及功能，客戶訂單量增長30%，研發周期縮短20%。

某能源設備公司‌：利用效果圖模擬風力發電機在實際環境中的運行狀態，提前發現并解決潛在問題，產品故障率降低15%。



數據支撐‌



根據行業調研，使用效果圖進行產品展示的企業，客戶決策效率提高40%，銷售轉化率提升25%。

在研發階段，通過效果圖驗證設計方案的企業，設計變更成本降低30%，研發周期縮短15%。



The production of industrial equipment renderings involves a wide range of industrial equipment types, and the following are some common types of industrial equipment:



Machine tool equipment:



Including lathes, milling machines, machining centers, etc., these types of equipment renderings are commonly used to showcase their precision structures, machining capabilities, and automated operation processes.



Printing equipment:



Such as offset printing machines, offset printing machines, etc., the renderings highlight their printing accuracy, automation control, and efficient production capabilities.



Chemical equipment:



Including reaction vessels, heat exchangers, towers (such as packed towers, floating valve towers), etc., the rendering shows their large structure, corrosion-resistant materials, and complex process flow.



Lifting and transportation equipment:



Such as cranes, forklifts, AGVs (Automated Guided Vehicles), etc., the rendering emphasizes their load-bearing capacity, flexible operation, and intelligent navigation.



Energy equipment:



Including wind turbines, solar photovoltaic systems, boilers, etc., the rendering displays their efficient power generation, modular installation, and environmentally friendly design.



Packaging equipment:



Such as filling machines, sealing machines, packaging lines, etc., the renderings highlight their automated packaging, efficient logistics, and modular design.



Medical equipment:



Such as X-ray detection systems, dental CNC milling machines, dental implant manufacturing machines, etc., the rendering displays their high-precision, intelligent, and ergonomic design.



Mining and construction equipment:



Including excavators, loaders, mining alarm systems, etc., the rendering shows their heavy-duty structure, efficient operation capabilities, and safety protection design.



Automation and testing equipment:



Such as robot production lines, laser welding machines, superconducting computers, etc., the renderings highlight their efficient production, precision machining, and high-tech feel.



Creating industrial equipment renderings has many important benefits, which are comprehensively and deeply explained from different dimensions as follows:



1、 Enhance product display and marketing effectiveness



Enhance visual appeal



The renderings present the appearance, structure, and function of industrial equipment in a visual and vivid way through realistic 3D modeling, material rendering, and scene layout, attracting customer attention.

Compared to traditional 2D drawings or textual descriptions, renderings have a stronger visual impact and can quickly convey the core values of the product.



Accurately convey design intent



The rendering accurately displays the dimensions, proportions, materials, and process details of industrial equipment, avoiding misunderstandings caused by inaccurate language or textual descriptions.

Customers can gain a comprehensive understanding of the product in advance through renderings, reducing communication costs and improving decision-making efficiency.



Promote market promotion and sales



In product brochures, websites, exhibitions, and other scenarios, renderings are important marketing tools that can enhance brand image and strengthen customer trust.

By showcasing the innovative design, efficient performance, and applicable scenarios of the product through renderings, it can stimulate customers' desire to purchase and promote sales conversion.

2、 Optimize design and R&D process



Design validation and iteration



In the product development stage, renderings can be used to verify the feasibility of the design scheme and detect potential issues in advance (such as structural conflicts, inconvenient operation, etc.).

By repeatedly modifying and optimizing the renderings, design changes in actual production can be reduced, and research and development costs can be lowered.



Cross departmental collaboration and communication



As a unified design language, renderings can promote communication and collaboration between departments such as research and development, production, and sales.

Each department can quickly understand the design intent through renderings, provide feedback, and ensure that the product meets market demand.



Reduce research and development risks



By simulating the performance of products in actual working environments through renderings, their applicability, reliability, and safety can be evaluated.

Identifying and resolving potential issues in advance can reduce research and development risks and ensure the smooth launch of products into the market.

3、 Support production and manufacturing processes



Guide production and assembly



The rendering can serve as a production guide to help workers understand the product structure, assembly sequence, and operational points.

Displaying the installation position, connection method, and debugging method of key components through renderings can improve production efficiency and reduce assembly errors.



Optimize the process flow



The rendering can be used to simulate the production process flow, evaluate the layout, equipment configuration, and logistics path of the production line.

By optimizing the process flow in the rendering, production efficiency can be improved and manufacturing costs can be reduced.



Training and teaching tools



The renderings can be used as training materials to help new employees quickly master product knowledge, operational skills, and maintenance methods.

In teaching scenarios, renderings can visually display the principles, structures, and functions of industrial equipment, improving teaching effectiveness.

4、 Enhance customer service and after-sales support



Customer customized demand response



Displaying industrial equipment with different configurations, colors, or materials through renderings can meet customers' personalized needs.

Customers can confirm the appearance and functionality of the product in advance through renderings, reducing communication costs in customized production.



After sales technical support



Rendering can serve as a tool for after-sales technical support, helping customers understand equipment structure, repair methods, and maintenance points.

Displaying the disassembly, replacement, and debugging steps of key components through renderings can improve the efficiency and quality of after-sales service.



Customer feedback and product improvement



Rendering can be used to collect customer feedback and understand their satisfaction with the product's appearance, functionality, and user experience.

By analyzing customer feedback, targeted improvements can be made to product design to enhance customer satisfaction and loyalty.

5、 Case and data support



Case analysis



A certain mechanical manufacturing enterprise: By displaying the appearance, structure, and functions of a new type of CNC machine tool through renderings, the customer order volume increased by 30% and the research and development cycle was shortened by 20%.

A certain energy equipment company: Using renderings to simulate the operational status of wind turbines in actual environments, potential problems were identified and resolved in advance, resulting in a 15% reduction in product failure rates.



Data support



According to industry research, companies that use renderings for product display have a 40% increase in customer decision-making efficiency and a 25% increase in sales conversion rate.

During the R&D phase, companies that validate their design plans through renderings can reduce design change costs by 30% and shorten the R&D cycle by 15%.

---
