生產線效果圖案例：

 【返回其它作品分類】

生產線設備效果圖制作因行業和生產需求不同而有所差異，以下是常見行業生產線設備的一些分類及舉例：

一、總裝車間生產線設備效果圖

AGV合裝線‌：主要設備有引導帶、AGV小車。

底盤線‌：主要設備有直軌空中軌道、彎軌空中軌道、摩擦驅動、底盤升降機、底盤吊具裝置。

內飾線和最終線‌：主要設備有固定滾床、地軌、剪式升降機、滑板、旋轉滾床、驅動裝置、轉線升降機。

PBS線‌：主要設備有電動夾緊器、氣動夾緊器、旋轉滾床、皮帶滾床、升降滾床、移動滾床、PBS轉內飾線升降機。

其他線‌：主要設備有空中軌道、倍速鏈運輸裝置、停止器、升降機、頂升移載機。

二、金屬加工生產線設備效果圖

原料處理設備效果圖‌：包括開卷機效果圖、矯平機效果圖、剪切機效果圖、縱剪機效果圖、橫剪機效果圖等，用于鋼卷的縱剪和橫剪、矯平、涂油、包裝等工序。

起重設備效果圖‌：如吊車效果圖、叉車效果圖、電磁吸盤等，主要用于吊運熱軋卷板。

后處理設備效果圖‌：包括鋼卷退火爐、罩式爐、連續退火爐、罩式退火爐、時效爐等，用于鋼卷的退火等后處理工序。

三、自動化生產線設備效果圖

電子制造效果圖‌：全自動貼片機效果圖、回流焊機效果圖、波峰焊機效果圖、全自動繞線機效果圖、全自動焊錫機效果圖、自動組裝機效果圖、自動測試機效果圖、全自動分切機效果圖、全自動激光打標機效果圖、自動封口機效果圖、自動鎖螺絲機效果圖等。

食品包裝效果圖‌：飲料自動生產線效果圖、食品包裝機械效果圖、休閑食品加工設備效果圖、罐頭食品加工設備效果圖等。

包裝類‌：自動封口機效果圖、自動貼標機效果圖、自動貼膜機效果圖、自動噴碼機效果圖、自動打包機效果圖、自動燙金機效果圖等。

塑料機械效果圖‌：自動注塑機效果圖、色母分選機效果圖、色母稱重機效果圖、塑料去毛刺設備效果圖等。

電池行業‌：充電寶自動組裝生產線效果圖、自動疊片機效果圖、電池全自動焊接機效果圖、全自動封裝機效果圖、極片入殼機效果圖、電池冷熱壓機效果圖、自動注液機效果圖、極片自動沖切機效果圖、電池切邊折邊燙邊機等。

汽車制造效果圖‌：輪轂自動打磨拋光、汽車保險絲組裝機效果圖、汽車自動生產線效果圖、汽車連接器自動組裝機效果圖等。

連接器行業‌：麻花針自動生鼓腰機效果圖、線簧孔自動穿絲機效果圖、插針自動壓接機效果圖、插針針徑分選機、RJ連接器自動組裝機、連接器自動插針機、光纖自動組裝機效果圖、插孔自動收口機、麻花針自動檢測校位機、USB自動組裝機、HDMI母座自動插端機等。

五金配件行業‌：門窗傳動器自動組裝機效果圖、彈簧鋼珠半自動組裝機效果圖、合頁自動組裝機效果圖、門把手自動組裝機、門把手自動打磨拋光機、月牙鎖自動組裝機、轉向角自動折彎機、五金型材自動切割機等。

手機行業‌：手機接口自動組裝機、手機屏幕貼膜機、手機屏蔽罩貼附機、手機自動噴碼機等。

安防鎖具行業‌：鎖芯自動鉆孔擴圓機效果圖、鎖芯自動組裝機、鎖芯自動鉆孔機、鑰匙自動銑牙去毛邊機等。

化妝品容器泵頭行業‌：扳機泵頭自動組裝機效果圖、標準扳機自動組裝機效果圖、化學劑泵頭自動組裝機效果圖、醫用消毒泵頭自動組裝效果圖機、軟硬管組裝機等。

電子電器行業‌：耳機自動組裝機、LED燈自動組裝機、點火器自動組裝機、電器部件自動組裝機、飲水器制冷片自動焊錫機、骨架自動插針機等。

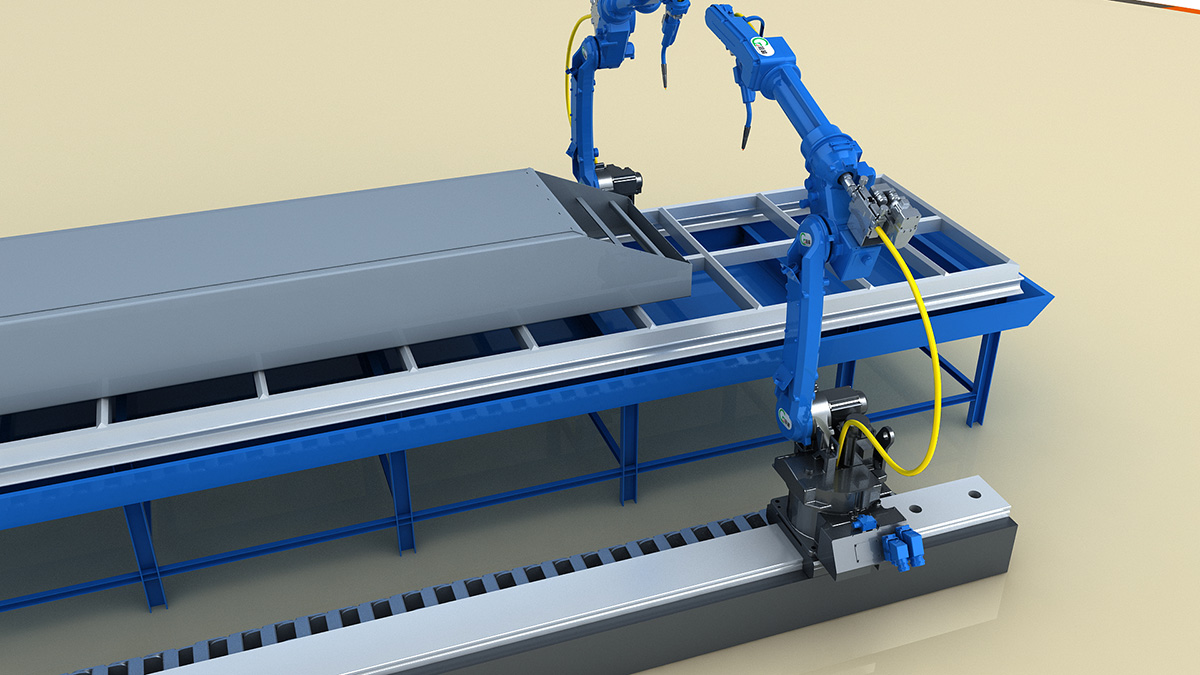

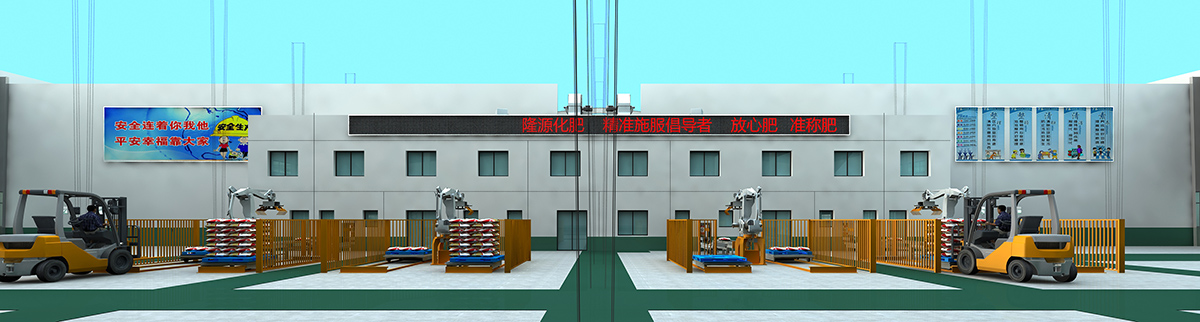

機器人自動化設備效果圖‌：機器人自動化焊接效果圖、機器人自動打磨拋光效果圖、機器人自動化取料等。

四、輸送與檢測設備效果圖

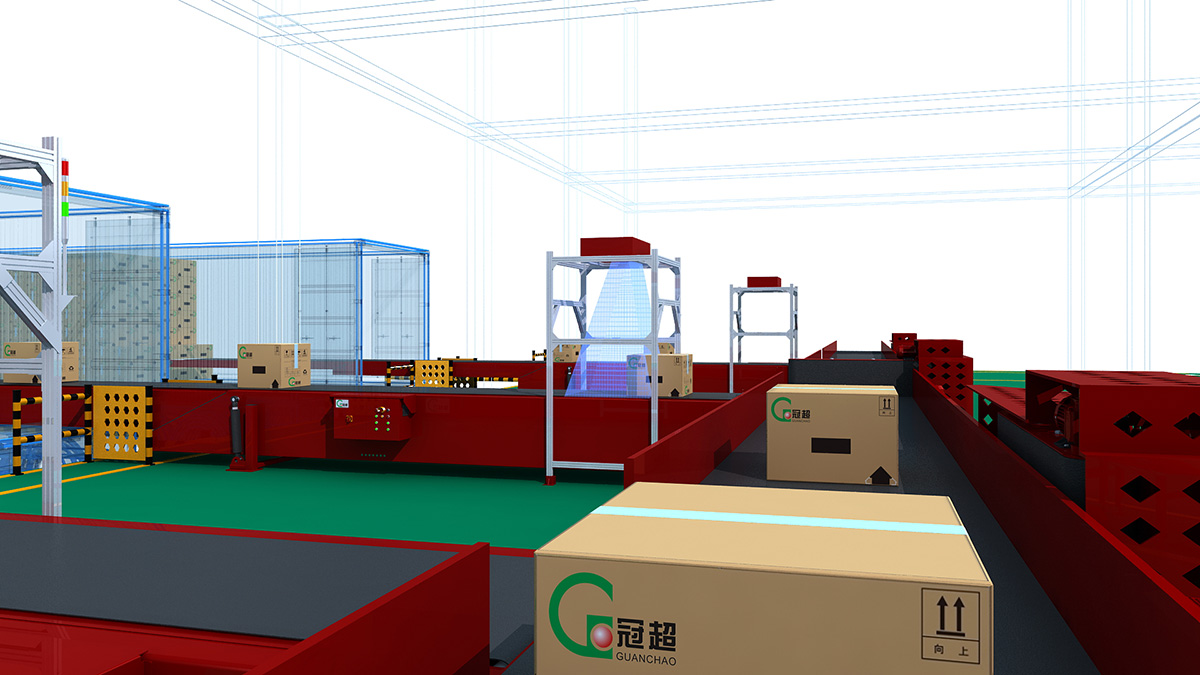

輸送裝置效果圖‌：皮帶輸送機效果圖適用于長距離、大量物料的連續輸送；滾筒輸送機適用于需要平穩輸送的場合；鏈?zhǔn)捷斔蜋C適用于需要精確控制物料位置的場景。

檢測與質量控制設備效果圖‌：質量檢測儀能夠檢測產品的各項性能指標；尺寸測量儀用于測量產品的尺寸精度。

五、其他輔助設備

給料機‌：能夠準確地將物料輸送到加工機械中。

振動篩‌：用于分離物料中的雜質。

洗砂機‌：用于清洗物料表面的污垢。

六、耐火材料生產線設備

原料處理系統‌：包括小袋投料站效果圖、噸袋投料站效果圖、拆包設備效果圖、氣力輸送裝置效果圖等。

輸送系統效果圖‌：皮帶輸送機效果圖、斗式提升機效果圖、螺旋輸送機效果圖等。

存儲系統‌：原料儲罐、中間緩存?zhèn)}等。

配料系統‌：自動配料系統、螺旋喂料機、振動喂料機、皮帶喂料機、稱重系統等。

混合系統‌：混合機等。

成型與壓制系統‌：液壓磚機、布料小車等。

干燥與燒成系統‌：烘干機、干燥窯、燒成窯等。

成品處理系統‌：出磚機、碼垛機效果圖、包裝機效果圖等。

控制系統‌：電器控制系統，包括PLC、觸摸屏等設備。

七、PC構件生產線設備

預處理設備‌：劃線機效果圖、模臺存取機等。

成型加工設備‌：混凝土布料機效果圖、振動臺等。

養護處理設備‌：立體養護窯效果圖等。

輸送系統‌：運輸車、擺渡車等。

輔助設備效果圖‌：清理機、數控劃線機、攤鋪式布料機、振動趕平機、預養護窯、抹光機、拉毛機、堆垛機、翻板機、模臺橫移車（升降式平移車）、構件專用運輸車、筒式送料機（混凝土輸送料斗）、流水線控制系統、鋼模臺、模板轉運車等。

鋼筋加工設備效果圖‌：全自動數控彎箍機、數控鋼筋調直切斷機、全自動數控剪切機、全自動數控彎曲機、自動鋼筋桁榘焊接機、鋼筋切斷機、鋼筋彎曲機、小彎箍機、小調直機、滾絲機、軌道運輸平臺、網片點焊機等。

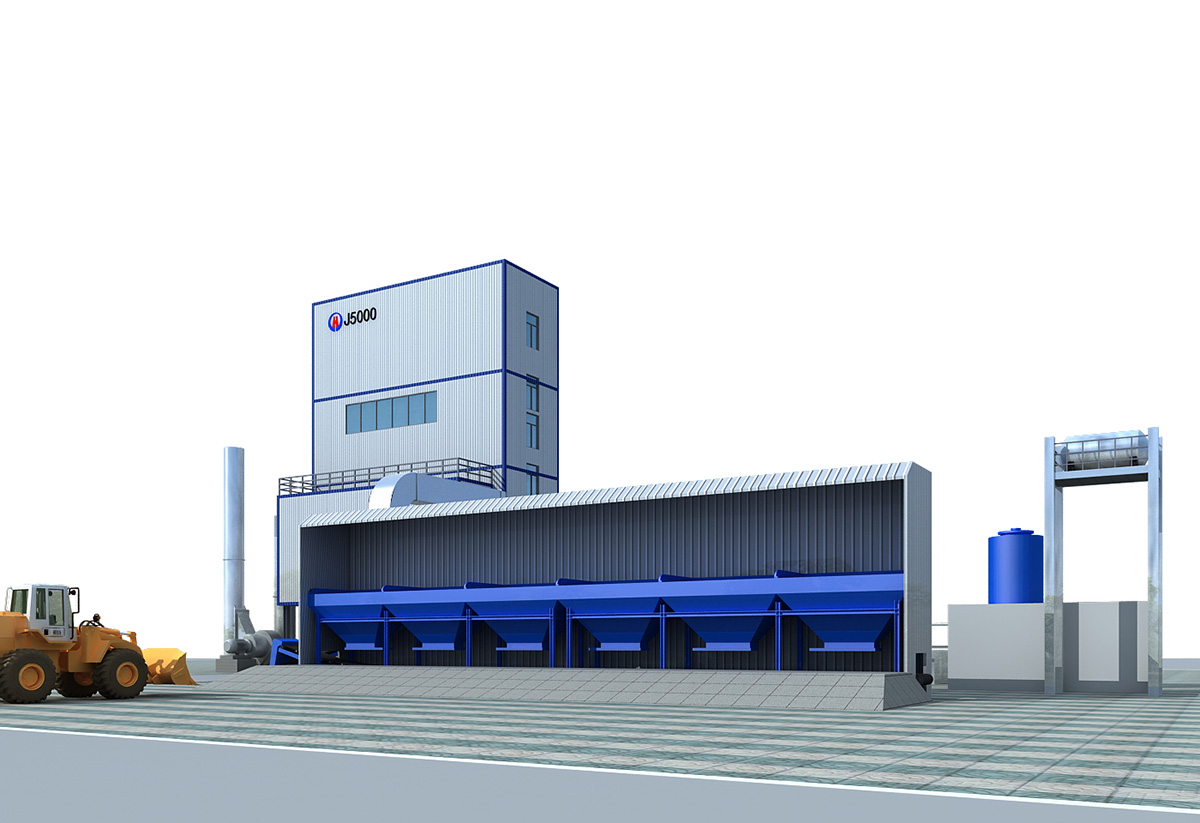

攪拌站設備效果圖‌：攪拌站、砂石料倉、水泥粉料罐、高架運料軌道、裝載機等。

固定模合車間設備‌：鋼模臺、電動布料斗、接料擺渡平臺、溫度控制系統、地坪打磨機、蒸養棚、手工混凝土料斗、構件運輸車等。

起重及廠內運輸設備‌：短距運輸貨車、叉車、龍門吊、雙梁橋式起重機、電子地磅等。

公用輔助設備‌：空壓機效果圖、試驗檢測設備效果圖、維修設備效果圖、除塵系統等。

八、破碎制砂生產線設備效果圖

核心設備‌：顎式破碎機效果圖、圓錐破碎機效果圖、反擊式破碎機效果圖、制砂機、洗砂機等。

輔助設備‌：振動給料機效果圖、振動篩、皮帶輸送機、控制系統、中轉料倉等。

來源：專業的效果圖公司，追求卓越18年的三維圖制作經驗，承接廠房/車間/倉儲/別墅/民宿/農莊/加油站/辦公樓/會所/景觀/園林/古建/祠堂/工程/亮化/道路/橋梁/幕墻/展館/室內類效果圖制做，覆蓋拌合站工程|工業|產品|機械|設備|生產流水線|鋼結構領域的3d效果圖制做，結合3D動畫全景圖交互渲染技術助力，提升設計方案創新和互動的的品質！—高維設計

The production line equipment rendering varies depending on the industry and production needs. The following are some classifications and examples of common industry production line equipment:

1、 Equipment rendering of the final assembly workshop production line

AGV assembly line: The main equipment includes guide belts and AGV carts.

Chassis line: The main equipment includes straight track aerial track, curved track aerial track, friction drive, chassis lift, and chassis hoisting device.

Interior Line and Final Line: The main equipment includes fixed roller beds, ground rails, scissor lifts, skateboards, rotating roller beds, drive devices, and transfer line lifts.

PBS line: The main equipment includes electric clamps, pneumatic clamps, rotating roller beds, belt roller beds, lifting roller beds, mobile roller beds, and PBS interior line elevators.

Other lines: The main equipment includes aerial tracks, double speed chain transport devices, stoppers, elevators, and overhead transfer machines.

2、 Equipment rendering of metal processing production line

Rendering of raw material processing equipment: including unwinding machine rendering, leveling machine rendering, shearing machine rendering, longitudinal cutting machine rendering, transverse cutting machine rendering, etc., used for longitudinal and transverse cutting, leveling, oiling, packaging and other processes of steel coils.

Lifting equipment renderings: such as crane renderings, forklift renderings, electromagnetic suction cups, etc., mainly used for lifting hot-rolled coils.

Post processing equipment rendering: including steel coil annealing furnace, hood type furnace, continuous annealing furnace, hood type annealing furnace, aging furnace, etc., used for post-treatment processes such as annealing of steel coils.

3、 Rendering of Automated Production Line Equipment

Electronic manufacturing renderings: renderings of fully automatic surface mount machine, reflow soldering machine, wave soldering machine, fully automatic winding machine, fully automatic soldering machine, automatic assembly machine, automatic testing machine, fully automatic slitting machine, fully automatic laser marking machine, automatic sealing machine, automatic screw locking machine, etc.

Food packaging renderings: beverage automatic production line renderings, food packaging machinery renderings, snack food processing equipment renderings, canned food processing equipment renderings, etc.

Packaging category: automatic sealing machine rendering, automatic labeling machine rendering, automatic film sticking machine rendering, automatic coding machine rendering, automatic packaging machine rendering, automatic hot stamping machine rendering, etc.

Plastic mechanical renderings: renderings of automatic injection molding machines, color masterbatch sorting machines, color masterbatch weighing machines, plastic deburring equipment, etc.

Battery industry: renderings of power bank automatic assembly production line, automatic laminating machine, fully automatic battery welding machine, fully automatic packaging machine, pole piece shell insertion machine, battery cold and hot press machine, automatic liquid injection machine, pole piece automatic punching machine, battery cutting, folding, and ironing machine, etc.

Automotive manufacturing renderings: automatic grinding and polishing of wheel hubs, renderings of automotive fuse assembly machines, renderings of automotive automatic production lines, renderings of automotive connector automatic assembly machines, etc.

Connector industry: Fried Dough Twists needle automatic drum waist machine renderings, wire spring hole automatic threading machine renderings, pin automatic crimping machine renderings, pin diameter sorting machine, RJ connector automatic assembly machine, connector automatic pin machine, optical fiber automatic assembly machine renderings, socket automatic closing machine, Fried Dough Twists needle automatic detection and alignment machine, USB automatic assembly machine, HDMI mother seat automatic insertion machine, etc.

Hardware accessories industry: renderings of automatic assembly machines for door and window actuators, semi-automatic assembly machines for spring steel balls, automatic assembly machines for hinges, automatic assembly machines for door handles, automatic polishing machines for door handles, automatic assembly machines for crescent locks, automatic bending machines for steering angles, automatic cutting machines for five metal profiles, etc.

Mobile phone industry: mobile phone interface automatic assembly machine, mobile phone screen film sticking machine, mobile phone shielding cover attachment machine, mobile phone automatic coding machine, etc.

Security lock industry: renderings of lock core automatic drilling and expanding machines, lock core automatic assembly machines, lock core automatic drilling machines, key automatic milling and deburring machines, etc.

Cosmetics container pump head industry: trigger pump head automatic assembly machine rendering, standard trigger pump head automatic assembly machine rendering, chemical agent pump head automatic assembly machine rendering, medical disinfection pump head automatic assembly rendering, soft and hard tube assembly machine, etc.

Electronic and electrical industry: headphone automatic assembly machine, LED light automatic assembly machine, igniter automatic assembly machine, electrical component automatic assembly machine, water dispenser refrigeration chip automatic soldering machine, skeleton automatic pin insertion machine, etc.

Robot automation equipment renderings: robot automation welding renderings, robot automation polishing renderings, robot automation material picking renderings, etc.

4、 Rendering of conveying and testing equipment

Conveyor device rendering: Belt conveyor rendering is suitable for continuous conveying of long distances and large quantities of materials; Roller conveyor is suitable for situations that require smooth transportation; Chain conveyors are suitable for scenarios that require precise control of material position.

Effect diagram of testing and quality control equipment: The quality tester can detect various performance indicators of the product; Dimensional measuring instruments are used to measure the dimensional accuracy of products.

5、 Other auxiliary equipment

Feeder: capable of accurately conveying materials to processing machinery.

Vibration screen: used to separate impurities in materials.

Sand washing machine: used to clean the dirt on the surface of materials.

6、 Refractory material production line equipment

Raw material processing system: including renderings of small bag feeding station, ton bag feeding station, unpacking equipment, pneumatic conveying device, etc.

Conveyor system renderings: belt conveyor renderings, bucket elevator renderings, screw conveyor renderings, etc.

Storage system: raw material storage tanks, intermediate cache warehouses, etc.

Ingredient system: automatic ingredient system, spiral feeder, vibrating feeder, belt feeder, weighing system, etc.

Hybrid system: mixer, etc.

Forming and pressing system: hydraulic brick press, fabric trolley, etc.

Drying and firing system: dryer, drying kiln, firing kiln, etc.

Finished product processing system: brick making machine, palletizing machine rendering, packaging machine rendering, etc.

Control system: Electrical control system, including PLC, touch screen and other equipment.

7、 PC component production line equipment

Preprocessing equipment: line drawing machine rendering, mold storage and retrieval machine, etc.

Forming and processing equipment: renderings of concrete laying machines, vibration tables, etc.

Maintenance treatment equipment: 3D maintenance kiln renderings, etc.

Conveyor system: transport vehicles, shuttle buses, etc.

Auxiliary equipment renderings: cleaning machine, CNC marking machine, paving type material feeder, vibration leveling machine, pre curing kiln, trowel machine, carding machine, stacker crane, flipping machine, mold platform transverse moving car (lifting translation car), component dedicated transport car, tube feeder (concrete conveying hopper), assembly line control system, steel mold platform, template transfer car, etc.

Renderings of steel bar processing equipment: fully automatic CNC bending machine, CNC steel bar straightening and cutting machine, fully automatic CNC shearing machine, fully automatic CNC bending machine, automatic steel bar truss welding machine, steel bar cutting machine, steel bar bending machine, small bending machine, small straightening machine, rolling machine, rail transportation platform, mesh spot welding machine, etc.

Equipment rendering of mixing plant: mixing plant, sand and gravel silo, cement powder tank, elevated material transport track, loader, etc.

Fixed mold workshop equipment: steel mold table, electric fabric hopper, material shuttle platform, temperature control system, floor polishing machine, steam curing shed, manual concrete hopper, component transport vehicle, etc.

Lifting and in plant transportation equipment: Short distance transport trucks, forklifts, gantry cranes, double beam overhead cranes, electronic weighing scales, etc.

Common auxiliary equipment: renderings of air compressors, testing and inspection equipment, maintenance equipment, dust removal systems, etc.

8、 Equipment rendering of crushing sand production line

Core equipment: jaw crusher rendering, cone crusher rendering, impact crusher rendering, sand making machine, sand washing machine, etc.

Auxiliary equipment: vibrating feeder rendering, vibrating screen, belt conveyor, control system, transfer bin, etc.

Source: A professional rendering company that pursues excellence with 18 years of experience in 3D rendering. We undertake the production of 3D renderings for factories, workshops, warehouses, villas, homestays, farms, gas stations, office buildings, clubs, landscapes, gardens, ancient architecture, ancestral halls, engineering, lighting, roads, bridges, curtain walls, exhibition halls, and indoor spaces. We cover the fields of mixing station engineering, industry, products, machinery, equipment, production lines, and steel structures, and combine 3D animation panoramic interactive rendering technology to enhance the quality of design innovation and interaction! - High dimensional design
